RWBP WIRELINE SET BRIDGE PLUG

Description

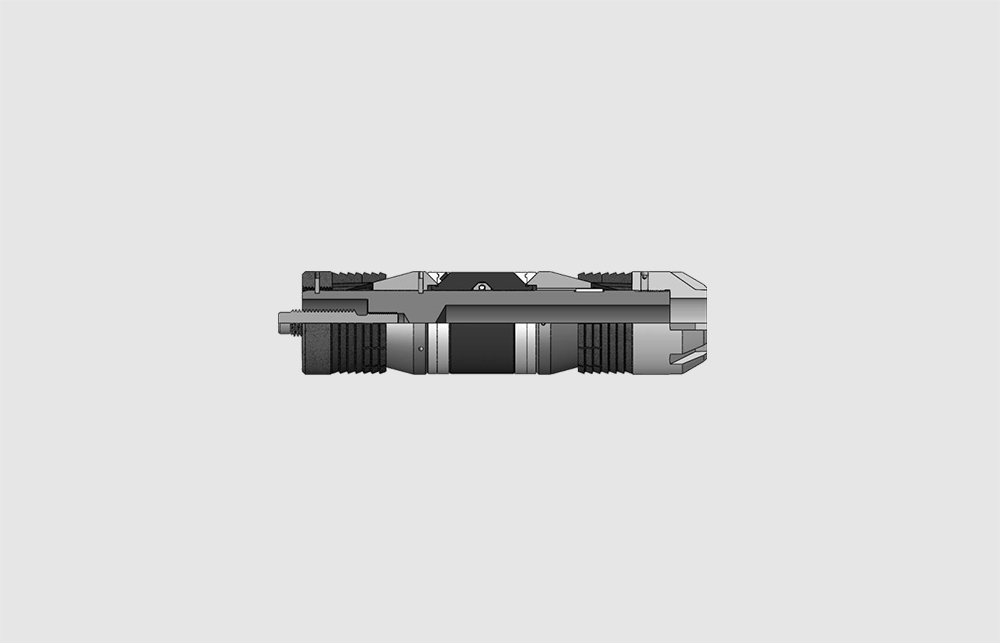

RWBP Wireline Set Bridge Plugs are compact, small OD and designed for easy drill out. These bridge plugs will set securely in all but the very highest tensile casing. A ratchet lock ring stores the setting force in the plug. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 2 3/8" through 16" casing.

Feature and Advantage

• Sets securely in most casing, including many premium grades

• Ratchet lock rings secure dynamic setting force

• One piece packing element and rocker action metal back up rings combine for a superior seal

• Compact, easy running

Application

• Temporary or permanent sealing

• Staged fracturing

Note:

(1) Max. temperature for standard tools is 275℉(135℃). Higher temperature ratings 350℉(177℃) or 400℉(204℃) are available upon request.

(2) Standard tools are good for up to grade P110 casing. Carbide inserted slips for casing grade Q125 and above are available upon request.
