15K WIRELINE SET BRIDGE PLUG

Description

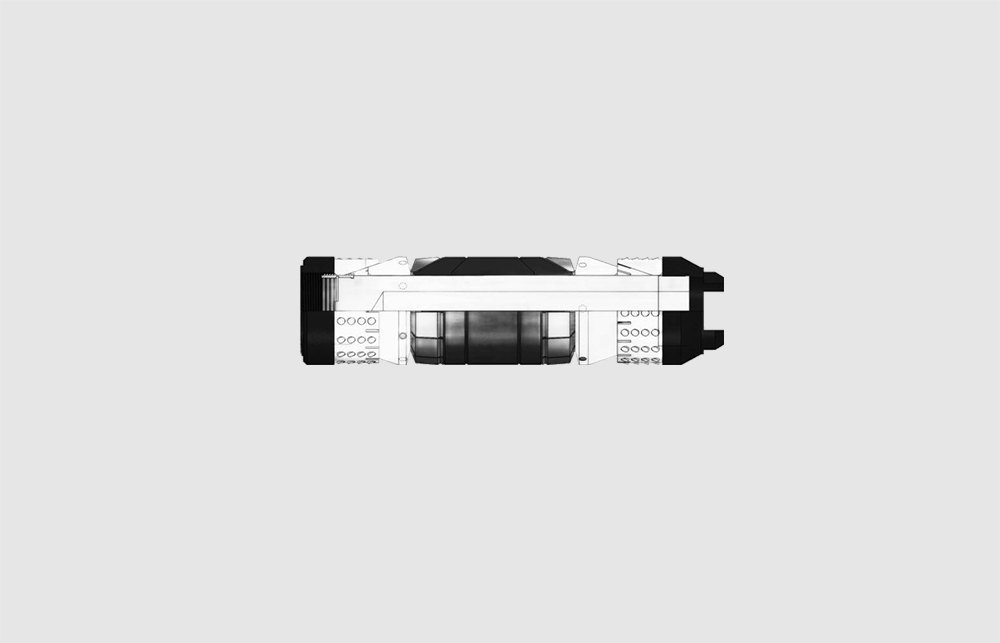

Model 15K Wireline Set Plugs are compact, small OD and designed for easy drill out. These Bridge Plugs will set securely in any hardness casing. A ratchet lock ring stores the setting force in the Plug. The three piece packing elements and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 4 1/2" through 7 5/8" casing.

Feature and Advantage

• Cast iron bridge plug, which can be set in the P155 casing grade

• The locking mechanism can ensure the durability of the bridge plug

• High-performance high-temperature rubber cylinder assembly

• Specialized rubber cylinder anti-squeeze assembly system

• The bridge plug can be retrieved by milling after the operation

• Resistant to unexpected blockage during the process and can be seated and locked properly

Application

• Temporary or permanent sealing

• Staged fracturing
