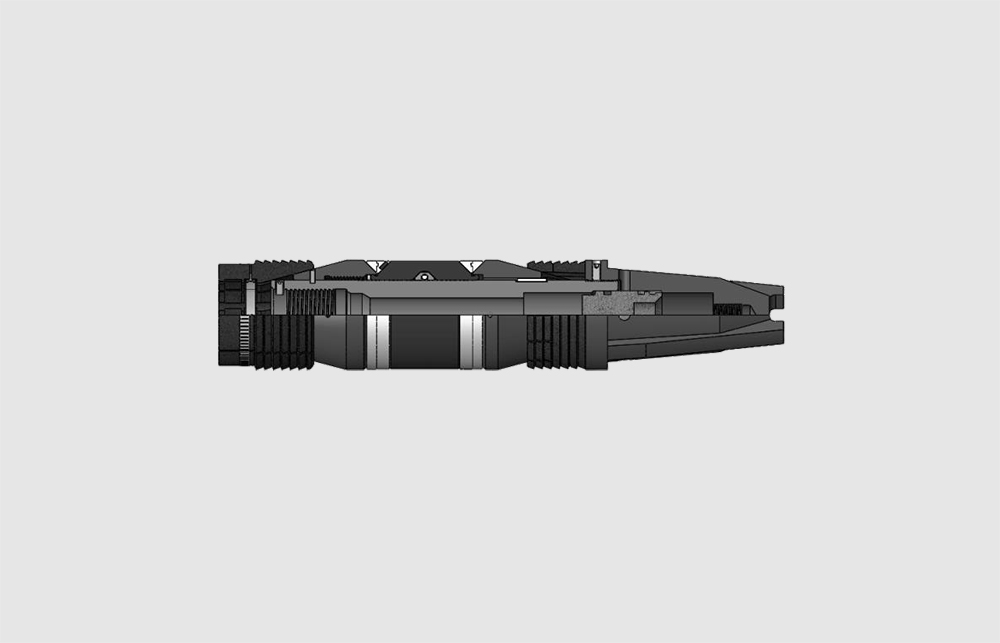

RMBP MECHANICAL BRIDGE PLUG

Description

RMBP Mechanical Bridge Plugs are used to isolate zones for temporary or permanent abandonment. These drillable bridge plugs set securely in any hardness casing. A ratchet lock ring stores the setting force in the bridge plug. The one piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 4 1/2" through 16"casing.

Feature and Advantage

• Ratchet lock rings secure dynamic setting force

• One piece packing element and rocker action metal back up rings combine for a superior seal

• Compact, easy running

• Set with Model RMSB Mechanical Setting Tool;

• These bridge plugs can be set on any standard baker style mechanical setting tool

Application

• Temporary or permanent sealing

• Staged fracturing

Note:

(1) Max. temperature for standard tools is 275℉(135℃). Higher temperature ratings 350℉(177℃) or 400℉(204℃) are available upon request.

(2) Standard tools are good for up to grade P110 casing. Carbide inserted slips for casing grade Q125 and above are available upon request.
