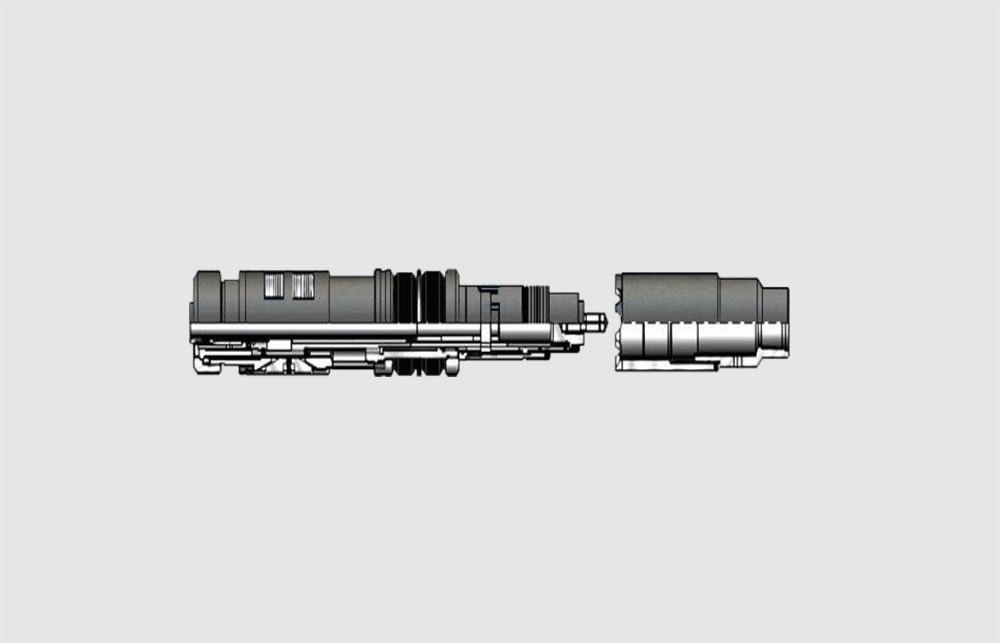

RWRB WIRELINE SET BRIDGE PLUGS( RETRIEVABLE)

Description

RWRB wireline set retrievable bridge plug is a medium performance retrievable bridge plug that is run and set by a wireline setting tool and retrieved by tubing. The plug is used for zone isolation, formation fracturing, acidizing, and wellhead repair and can be lubricated in and out of the well under pressure, therebye liminating snubbing tubing or killing the well. The plug features a balanced equalizing value located immediately above the packing element system, Caged, bidirectional.one piece slips are located below the packing and firmly anchor the plug against pressure differentials from above or below, The plug is retrieved by ratcheting onto the retrieving neck, picking up four inches to equalize, setting down to uplock, then picking up to remove from well. No rotation is required to retrieve.

Feature and Advantage

• Compact, fast running, wireline set

• Tubing retrievable, No rotation required

• Balanced equalizing valve opens upwardly which reduces possibility of accidental opening

• Equalizes close to top of packing elements tubing manipulation from the surface for better control

Application

• Temporary or permanent sealing

• Staged fracturing

Note:

(1) Max. temperature for standard tools is 275℉(135℃). Higher temperature ratings 350℉(177℃) or 400℉(204℃) are available upon request.

(2) Standard tools are good for up to grade P110 casing. Carbide inserted slips for casing grade Q125 and above are available upon request.
