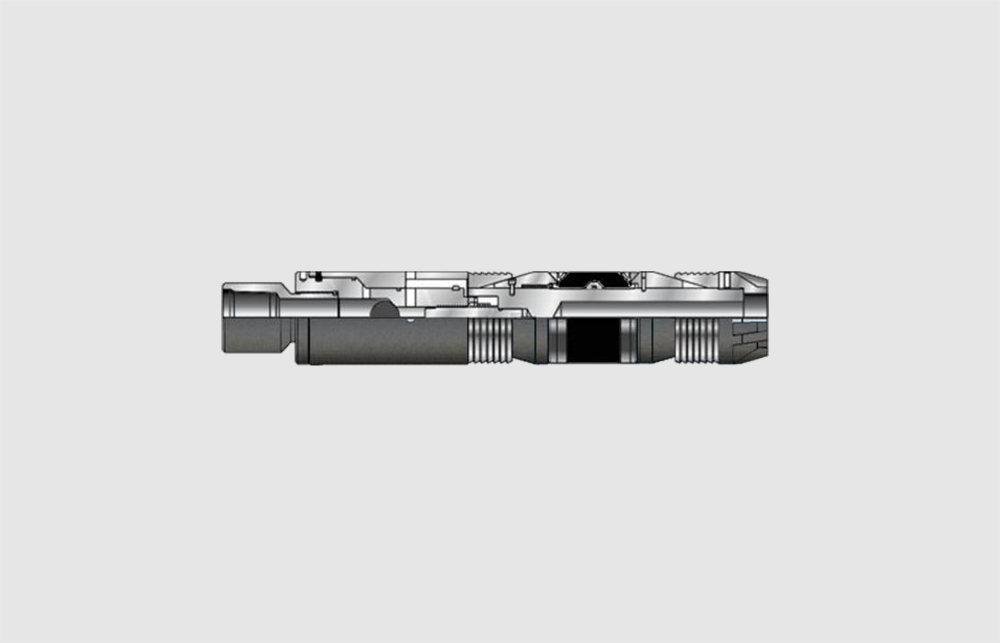

RHMBP HYDRO-MECH SET BRIDGE PLUG

Description

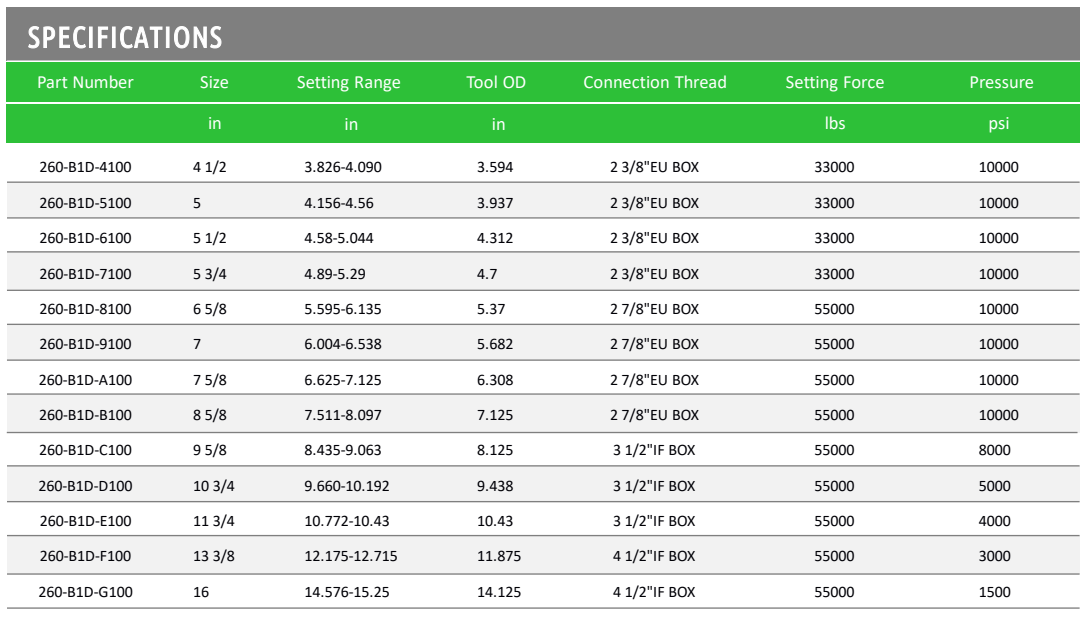

RHMBP Hydro-Mech Set Bridge Plugs are used for temporary or permanent isolation of oil, gas and water, such as zone isolation, formation fracturing, acidizing. These bridge plug can be set by drop a ball and up lift, do not need any setting tools. They are available for 4 1/2" through 16" setting range.

Feature and Advantage

• Compact, easy running

• Can be released by right hand rotation in an emergency

• One piece packing element and rocker action metal back up rings combine for a superior seal

Application

• Temporary or permanent sealing

• Staged fracturing

Note:

(1) Max. temperature for standard tools is 275℉(135℃). Higher temperature ratings 350℉(177℃) or 400℉(204℃) are available upon request.

(2) Standard tools are good for up to grade P110 casing. Carbide inserted slips for casing grade Q125 and above are available upon request.
