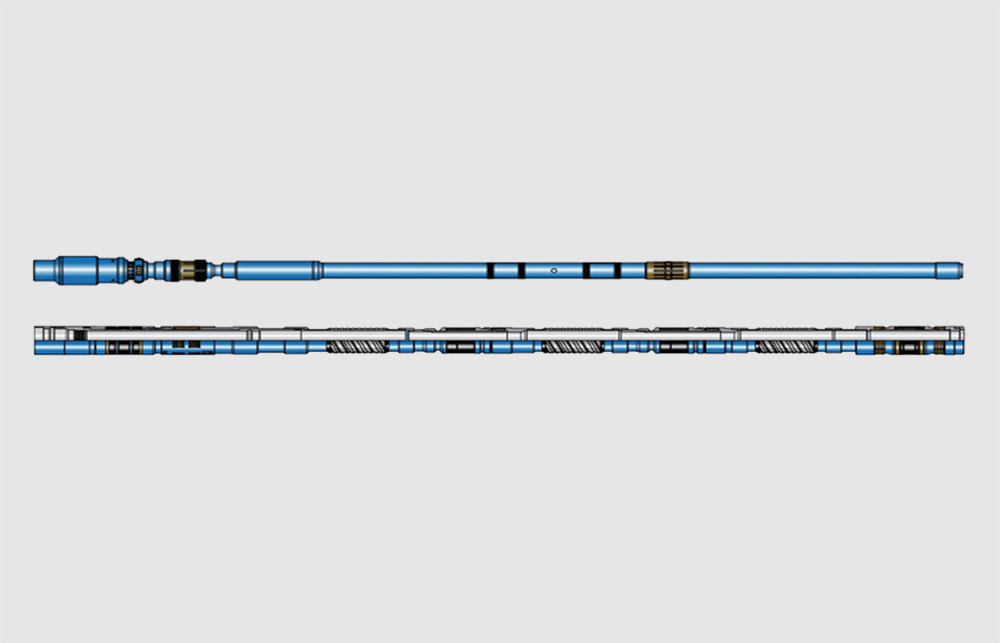

MZSA MULTI-ZONE STAND ALONE SCREEN SYSTEM

Kelly MZSA system is sort of Stand Alone screen sand control technology for several zones in casing well. If zone isolation is necessary, screen assembly can be conjunction with several isolation packers, which can also be mounted with seal bores below and above, thus it is available to selective producing or controlling water if insert seal assembly into seal bore at later stage.

Feature

• Installation in one trip

• Isolation will be set one by one

• Able to selective produce, water control or intervention at later stage

• Install the number of isolation packers according to the zones

• This technology is low cost and low risk for sand control in casing well

Associated Tools

• RHS Recoverable Hydraulic setting hanger packer

• QC Quick Connection Joint

• HIP Isolation Packer

• PHS Sump Packer

• HST Hydraulic Setting Tool

• WDV Wight Down Tools

• CSA Snap Latch Seal Assembly
