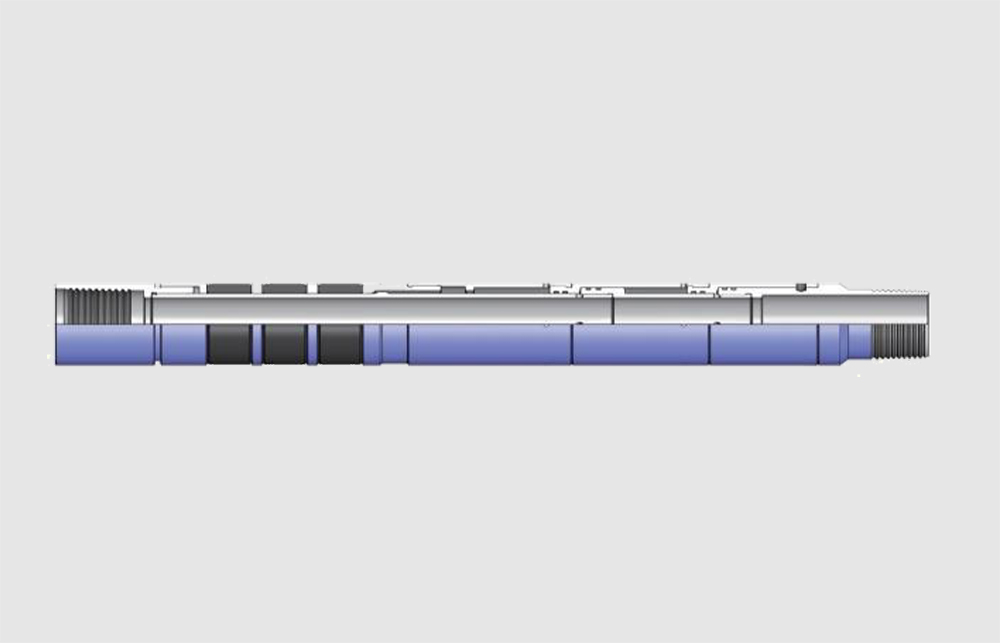

HIP ISOLATION PACKER

The HIP Isolation Packer was designed for zones isolation in multi-zone gravel pack or stand alone operation. This packer can be set by applying tubing pressure which acts on a piston area in the bottom of the packer, if retrieving is needed, this packer can be released easily by simple upward pull on the tubing.

Because this packer has no slips, it can simply be installed as part of the completion string along with the top hanger packer.

Feature

• No mandrel movement while setting

• Tandem application

• Pull release feature

• Selective production

• Water or gas shutoff

• three-piece multi-durometer elements suitable for both high and low pressure as well as casing irregularities

• Large bore can provide enough space for selective production and later Intervention
