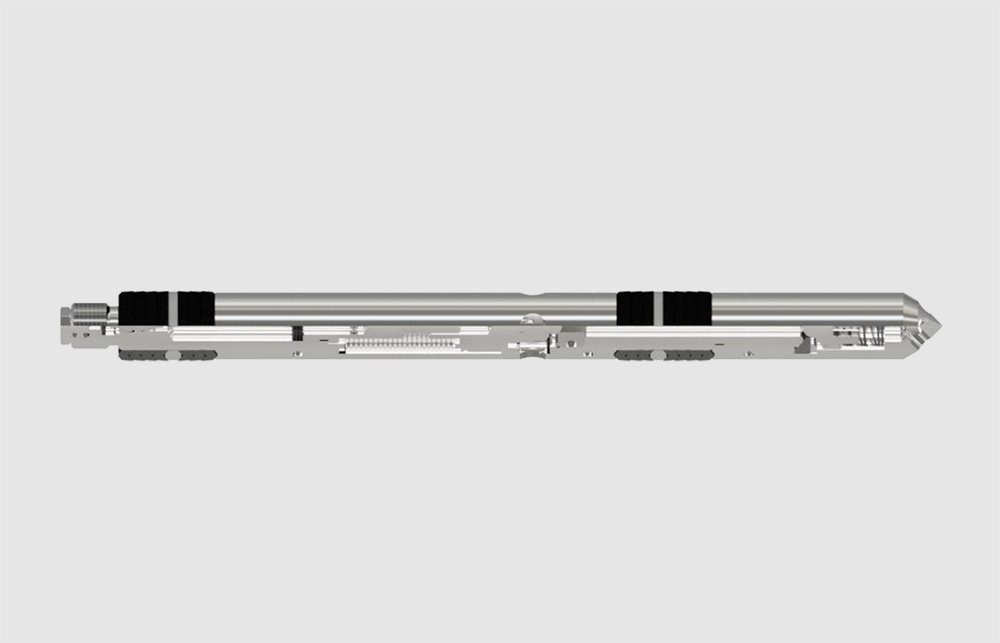

WIRELINE RETRIEVABLE INJECTION PRESSURE OPERATED GAS LIFT VALVE（WLR IPO）

Description

The side pocket mandrel oval type is used for installing 1 "or 1.5" wireline retrievable flow control device. After the mandrel is lowered into the designated position by tubing, standard wireline tools can be used to running and pulling the wireline retrievable flow control device. This mandrel is equipped with a orienting sleeve and a discriminator. The materials of the side pocket mandrel oval type include L80 and L80-13Cr. The connection can be customized.

Feature and Advantage

• 3-ply MONEL bellows in all valves that require them for optimum performance and durability

• Filling the bellows with silicon fluid protects the bellows from hydrostatic forces (pressure) in the well by forming a hydraulic barrier

• This silicon fluid also minimizes the vibrations and chattering which prevents the seat from any damage

• Tungsten Carbide or MONEL seat can be replaced easily for servicing

• The maximum travel stop feature eliminates the risk of bellow stacking

• The wireline retrievable feature of these valves means the there is no need to pull the entire tubing for maintenance or exchange

• The valves come complete with the fundamental check valve which will avert reverse flow from tubing to casing

• The valve is compatible with all standard top latches giving its application more versatility

• Use below 302℉

Application

• Continuous flow or intermittent gas lift
