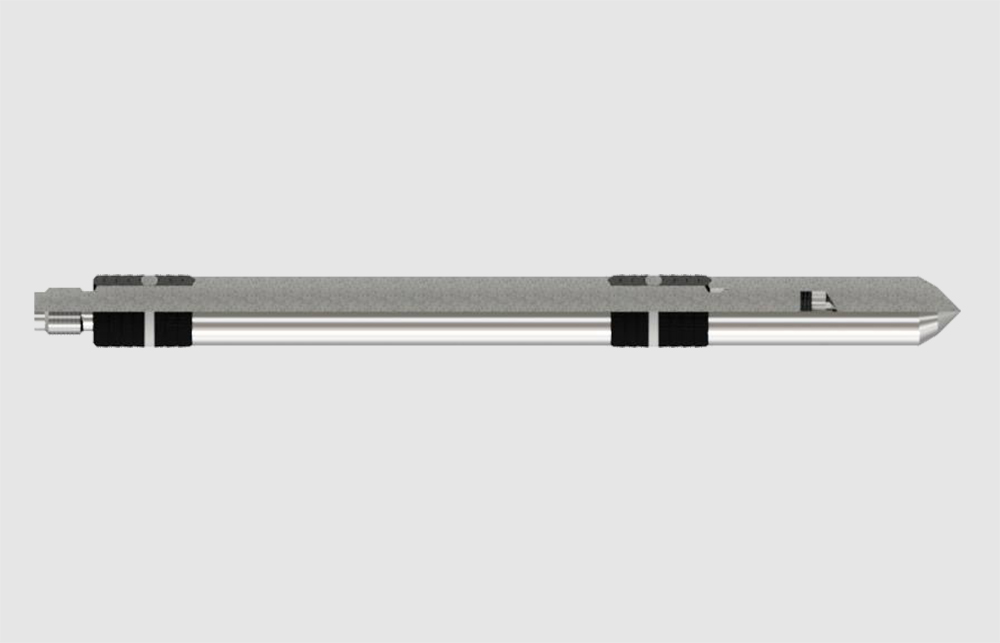

WIRELINE RETRIEVABLE DUMMY VALVE

Description

The wireline retrievable dummy valve is a solid gas lift valve that can be run and pulled using standard wireline tools. It can be used in combination with a round and OVAL SPM to block the flow channel between the SPM and the casing annulus, isolating the tubing and the casing annulus. The default base material for this valve is 316L, and nickel based alloy materials such as MONEL and INCONEL can also be provided according to customer requirements.

Feature and Advantage

• Compatible with all standard top Latch and SPM，highly versatile

• Packing elements commonly are MGFT

• Use below 302℉

Application

• Gas lift production
