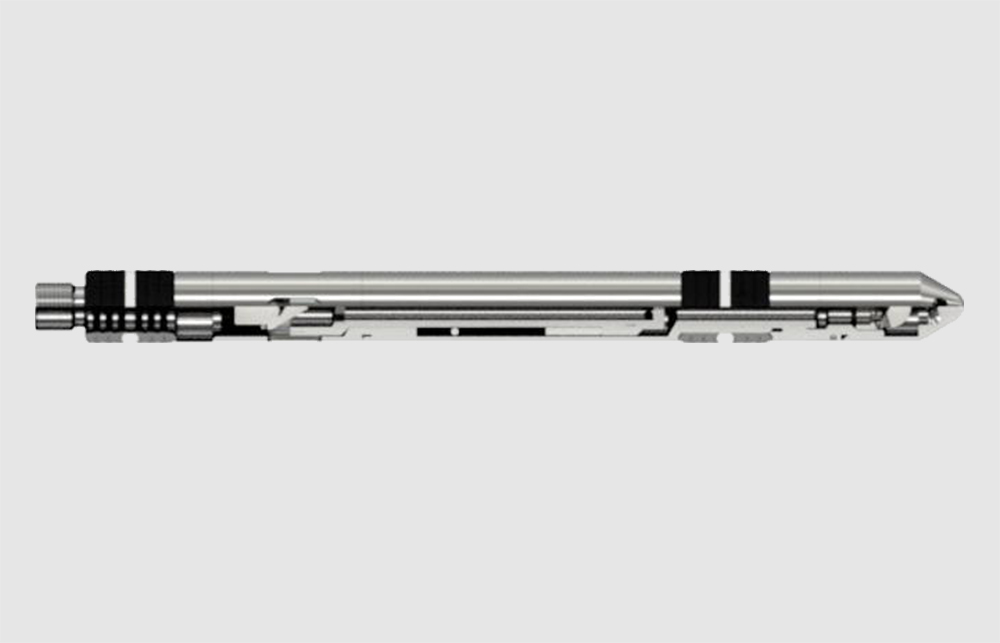

WIRELINE RETRIEVABLE WATER FLOOD VALVE

Description

The wireline retrievable water injection valve (also known as WLR water injection valve or water injection regulating valve) can be run and pulled using standard wireline tools. It can be used in combination with a round or OVAL SPM or a water injection SPM to regulate the water injection rate into a designated formation in multiple isolated areas of the tubing. The default base material for this valve is 316L, and nickel based alloy materials such as MONEL and INCONEL can also be provided according to customer requirements.

Feature and Advantage

• INCONEL X-750 can adapt to high temperatures and corrosive media in wells

• Tungsten Carbide seat has excellent erosion resistance and improves product life

• Can meet a wide range of traffic

• Use below 302℉

Application

• Layered water injection
