ONE TRIP CASING EXIT SYSTEM

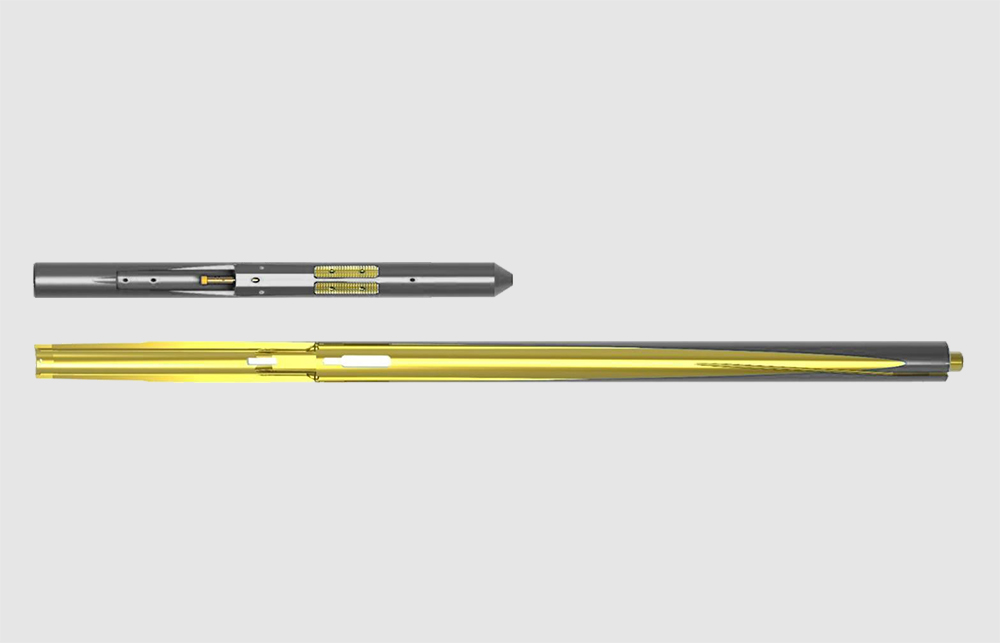

Mechanical & Hydraulic Whipstock c/w 2° and 3° concave .The Rock’s W-1 one trip casing exit system is new generation casing exit system，which provides a single trip, retrievable, hydraulically actuated re-entry system that can save rig time and reduce installation costs & risks. The concave provides 2°& 3° configurations, offering more options for customers. The anchor has the capability of higher expansion, as one size anchor can catch multiple casing weights, reducing the risk associated with wellbore obstructions or restrictions.

Features:

• Innovative, simple, rugged, robust design.

• Aggressive mill geometry provides full-gauge Aggressive mill geometry provides full-gaugey.

• Allow normal flow rates for well control or MWD orientation.

• More flexible, accommodates 2-3 casing weights（PPF).

• Hydraulic actuation eliminates bridge plug installation.

• Hydraulics/mechanical optional.

• Two options to retrieve (Die Collar & Hook).

• 2° and 3° Concave optional.
