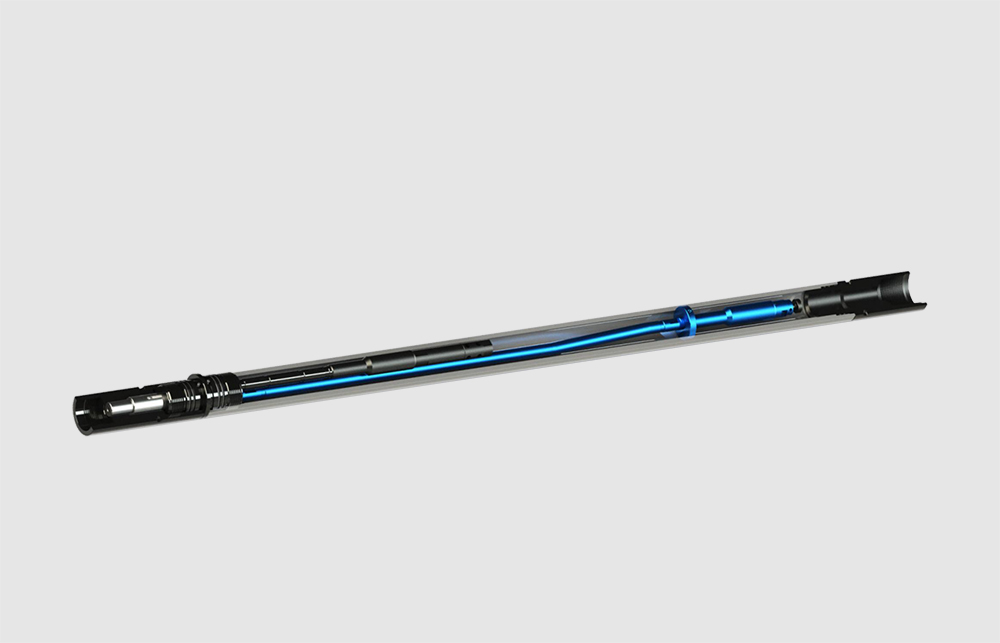

Dual Top Firing Head

The Dual Top Firing Head provides an ideal solution for redundant firing systems generally requested for rig less permanent completion perforating operations. It consists of the Drop Bar Hydrostatic and Direct Pressure Firing Heads which function completely independent of each other inside a single assembly. Operating procedures for this system are determined by which firing head is used as the primary system. Generally, the pressure activated firing head is preferred as the primary system. Should no shot be detected using the pressure activated firing head, the mechanically activated firing head can be used as backup. This will ensure no formation damage can occur through pressuring up the wellbore should the primary system have perforated without any indication.

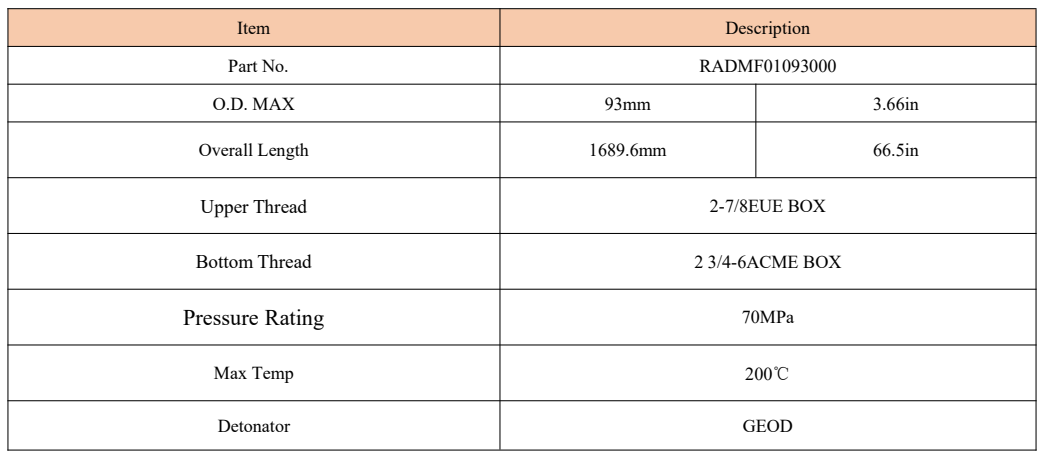

Technical Information

Additional Instructions

Body Material: 4140

O-ring Material: Viton-70 Durometer

Connection Thread could custom

Could fit pressure type

Could fit drop pressure-activated type
