1 9/16", 6Spf, 60°, Perforating Gun

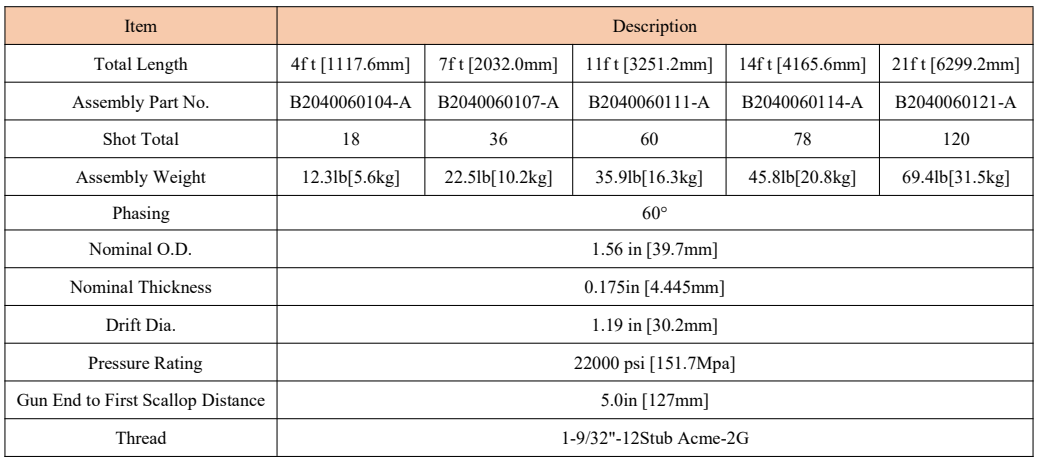

Technical Information

Additional Instructions

Gun Body Material:                      Hot Finished, Seamless Steel Tubing

Gun Body Configuration:              Threaded & Scalloped

Charge Tube Type:                       Round Steel Tube

Type of Tandem Connection :      Booster to Booster

O-ring Material:                           Nitrile-90 Durometer or Viton-95 Durometer

O-ring Size:                                 O-Ring AS-215

Shaped Charges:                         2.9g

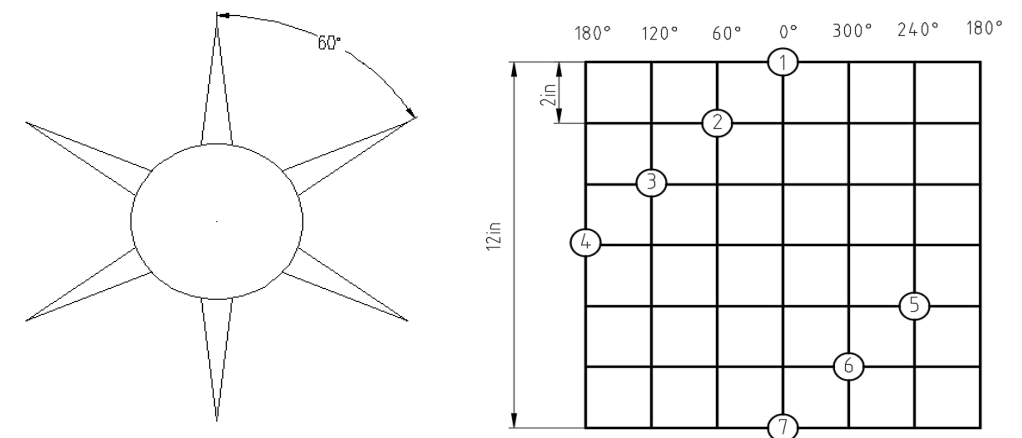

Shot Pattern
