TIME DELAY FUSE

DESCRIPTION

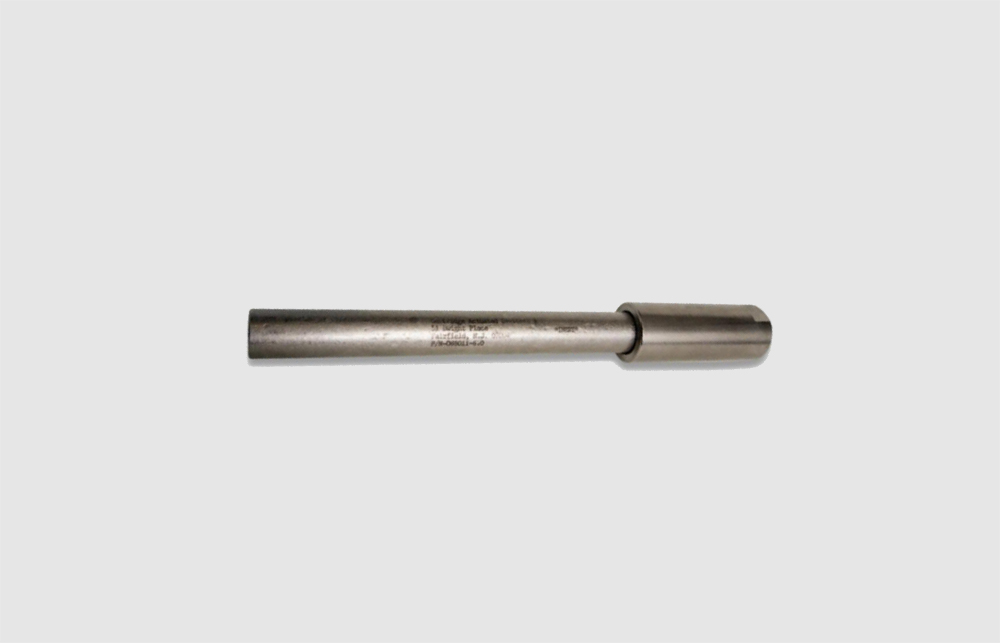

The Fike Time Delay Fuse is a chemically generated time delay device used in downhole oil and gas completion operations. They are typically used in Tubing Conveyed Perforating (TCP) operations to initiate detonation of an oilfield detonation cord booster on perforating guns. It is initiated by the Fike Fuse Igniter part number 072130 or equivalent.

The Fike Time Delay fuse is a 6 minute delay and is a direct replacement for existing products. It is intended for use in existing firing heads in the Oil and Gas industry. Other time delays are available in 45 second increments. Please contact Fike for details.

SPECIFICATIONS

At Fike, our highest goal is to ensure that our energetic products are safe for handling and use by customers. Fike Percussion Initiators have undergone extensive testing to meet and exceed the following standards and regulations:

• API RP-67 Standard 5lb No-Fire Test

• API RP-67 Standard 10lb All-Fire Test

• API RP-67 Six (6) Foot Drop Test

• U.S. Military Standard 331 - Forty (40) Foot Drop Test

• DOT Hazardous Material Requirements

• CE Certified Safety Directives
