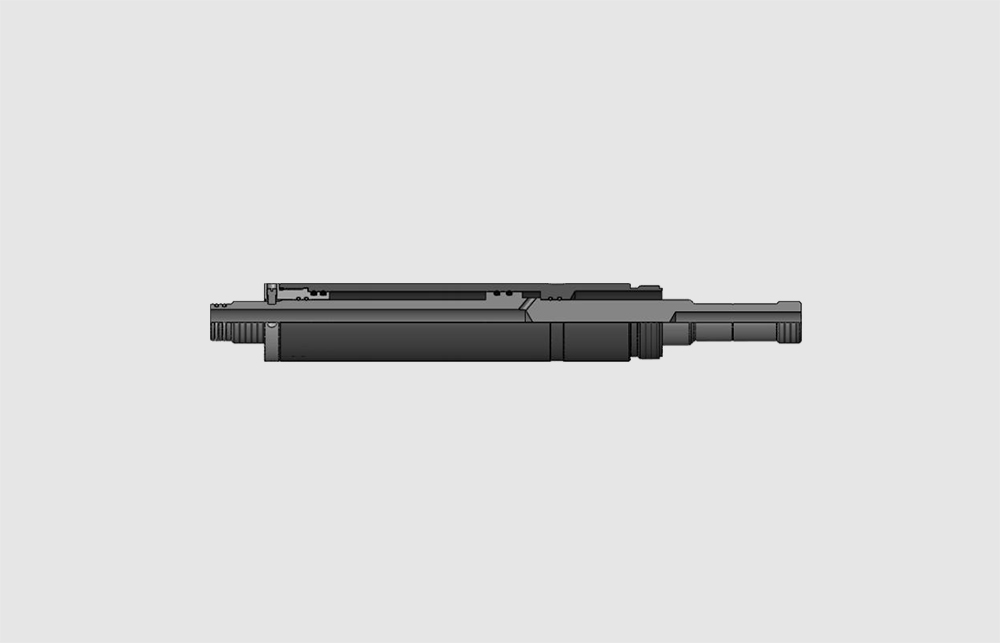

DISPOSABLE WIRELINE SETTING TOOL

Description

The wireline bridge plug setting tool is used in cable bridge plug operations, connecting the bridge plug and the wireline. When power is applied on the ground, the igniter inside the setting tool is detonated through the cable, and the main charge column is ignited. The gas pressure generated by the combustion of the main charge column drives the setting tool to produce relative motion, achieving the setting and release of the bridge plug.

Feature and Advantage

• The tools cannot be recycled after use. They are low in cost but high in reliability

• No maintenance required, high construction efficiency

• High level of security

Application

• Sealing off production layers or injection layers.

• Set the bridge plug or the packer
