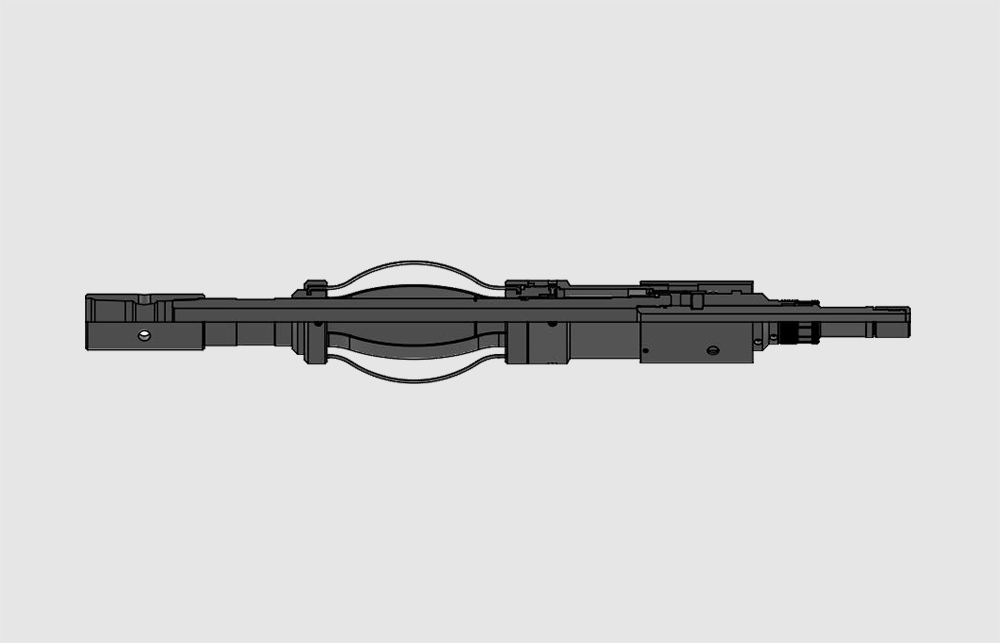

RMSB MECHANICAL SETTING TOOL

Description

RMSB Mechanical Setting Tools are used to mechanically set RMBP Bridge Plugs. It is designed to contain the upper slips of Bridge Plug in a safe retracted position while running to setting depth. The upper slips are released by right hand rotation and slacking off on the work string.

Feature and Advantage

• Special designed Bow Spring provide positive control and allows one size Mechanical Setting Toolsto cover a large range of casing weight

• Locked with Bridge Plug

• The Upper slips are held in a safe retracted position while running

• Can quickly be configured to set RMBP Bridge Plugs

Application

• Sealing off production layers or injection layers.

• Set the RMBP Bridge Plugs
