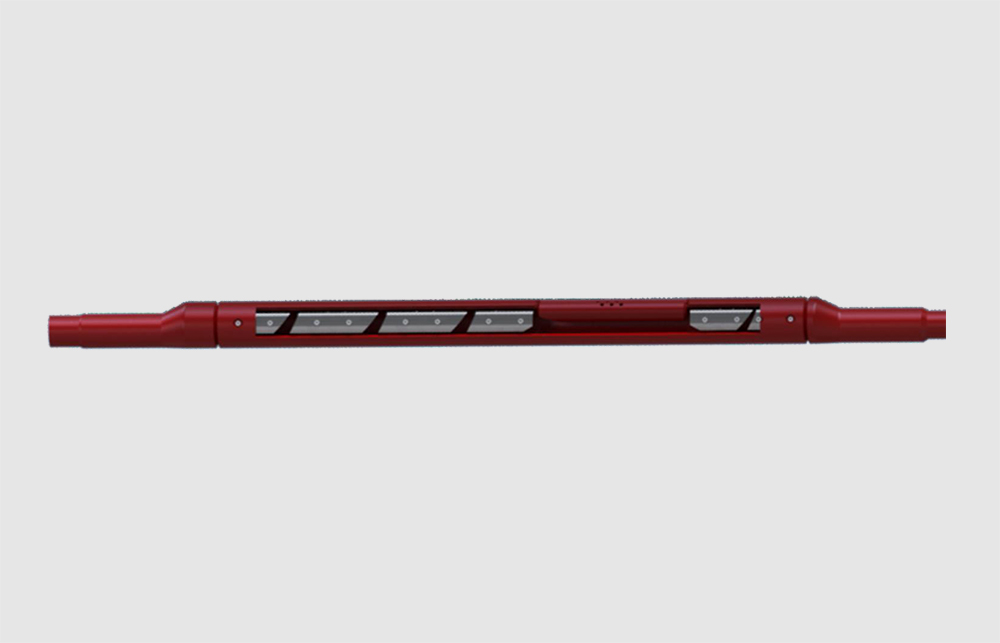

CEMENT THROUGH SIDE POCKET MANDREL

Description

The cement through side pocket mandrel is made up as an integral part of the production tubing when preparing a well for gas lift .The mandrel is used when cementing a production liner to provide a well bore completion in one trip. The mandrel components are designed to clean excess cement during final cement placement. Industry standard 1″ side pocket flow control devices will fit this mandrel. This mandrel is designed to be installed in deviated or straight hole wells. This mandrel is of a orienting sleeve and a discriminator. The materials of the cement through side pocket mandrel include L80、L80-13Cr、S13Cr-110KSI and INCONEL 718. The connection can be customized.

Feature and Advantage

• The interior has a unique structure to prevent cement accumulation

• With a orienting sleeve and a discriminator

• Same drift ID with tubing

• Round body for high pressure or special clearance application

• Use below 302℉

Application

• Well bore completion in one trip for cementing and production
