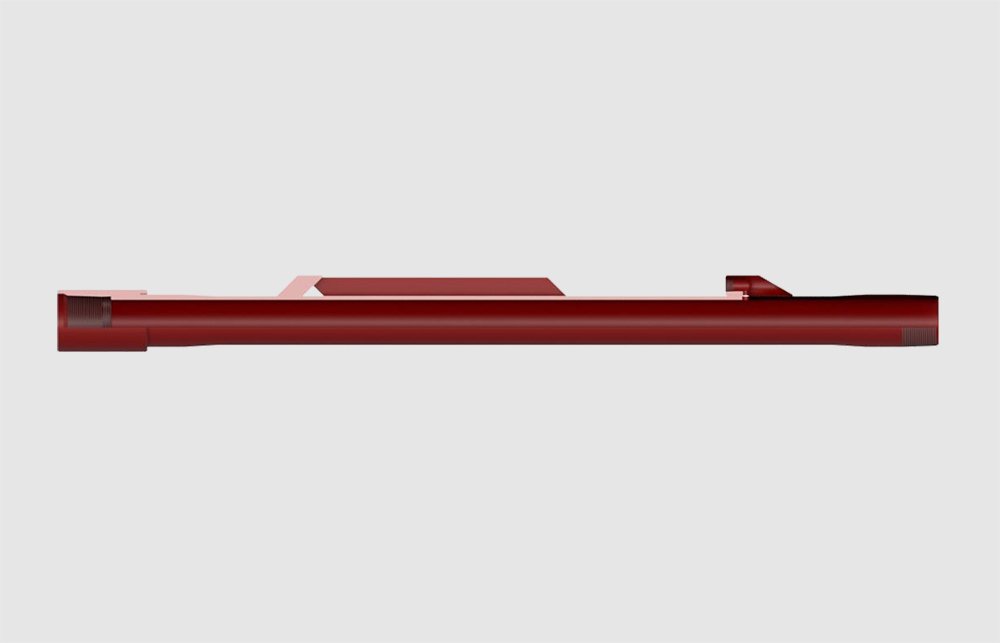

CONVENTIONAL GAS LIFT MANDREL WELDED TYPE

Description

The conventional gas lift mandrel welded type is used for installing 1 "or 1.5" conventional flow control devices. This mandrel is equipped with guard plates to protect the valve to damage during installation or removal from well. The materials of the conventional gas lift mandrel welded type include L80.

Feature and Advantage

• Simple structure, convenient and reliable use

• With guard plate to protect valve

• Same drift ID with tubing

• Standard NPT thread for valve

• Use below 302℉

Application

• Gas lift production
