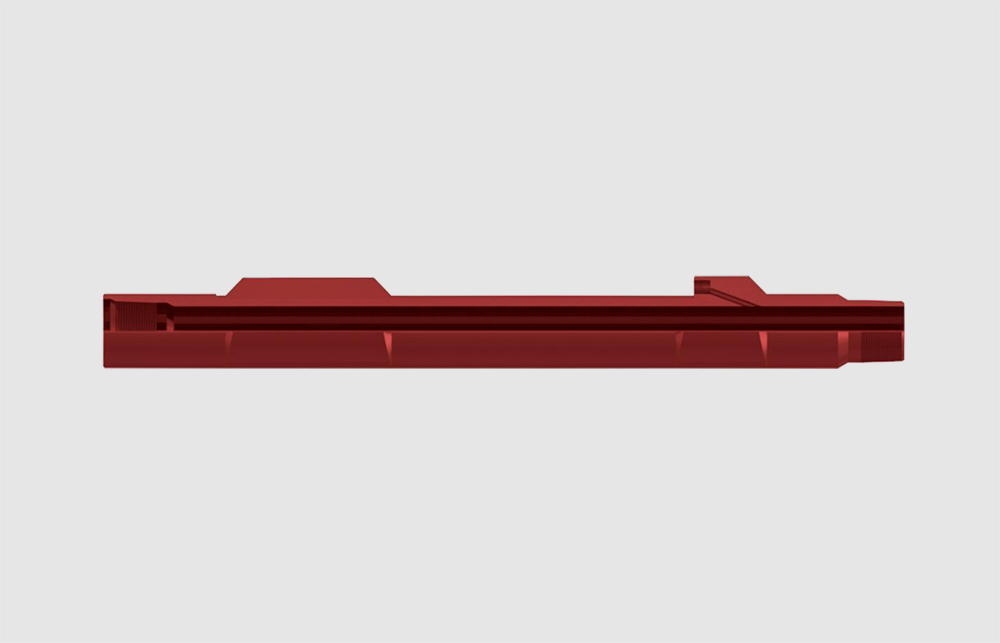

CONVENTIONAL GAS LIFT MANDREL INTEGRAL TYPE

Description

The conventional gas lift mandrel welded type is used for installing 1 "or 1.5" conventional flow control devices. This mandrel is processed using the entire bar material, with high strength; Design with installation protection groove to protect the valve to damage during installation or removal from well. The materials of the conventional gas lift mandrel welded type include L80、L80-9Cr and L80-13Cr.The material and connection can be customized.

Feature and Advantage

• Simple structure, convenient and reliable use

• with installation protection groove to protect the valve

• Same drift ID with tubing

• Standard NPT thread for valve

• Oblique structure, smoother running and pulling

• Use below 392℉

Application

• Gas lift production

• Chemical injection
