LATCH

Description

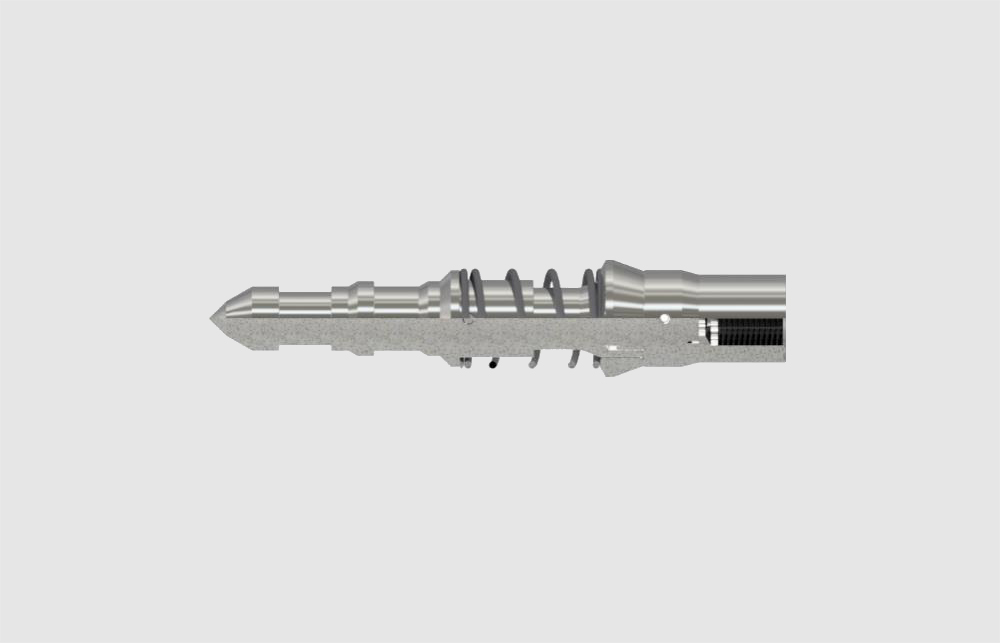

The Latch is used to run, pulled, and latch the 1 "or 1.5" wireline retrievable gas lift valve into the side pocket mandrel. The gas lift valve can be installed in or pulled out the pocket of SPM in conjunction with standard wireline tools. The default material for the locking mechanism is 316L, but nickel based alloy materials such as MONEL and INCONEL can also be provided.

Feature and Advantage

• Can be matched with standard steel wire insertion tools and salvage tools

• Can be matched with standard steel wire recovery gas lift valves

• The main material can be adjusted according to the usage environment

Application

• Used for run, latch, or pulled operations of 1 "or 1.5" wireline retrievable gas lift valves
