OK SERIES KICKOVER TOOL

Description

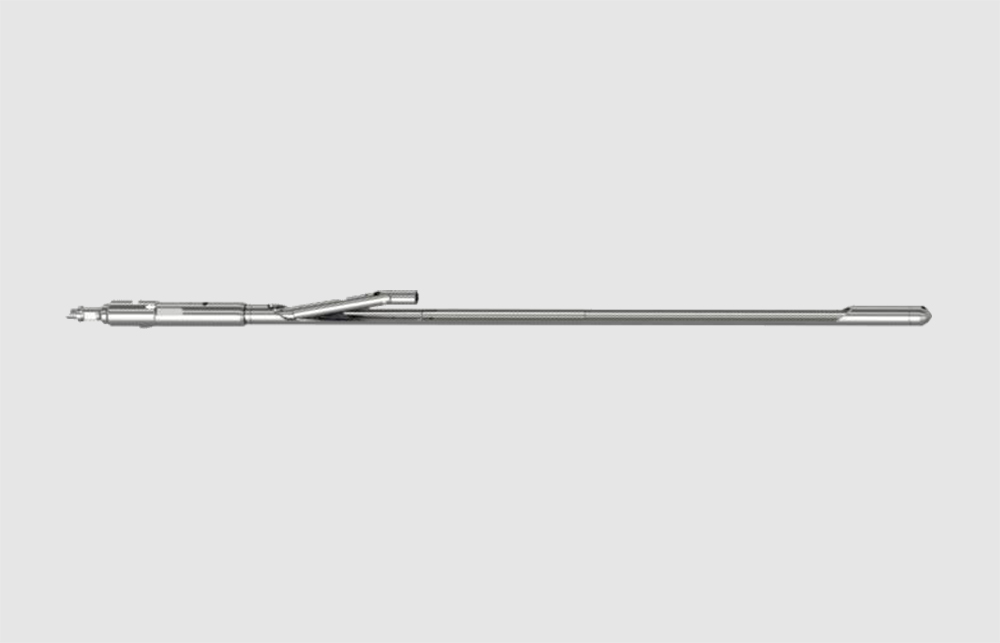

The OK series kickover tool is used to install and remove an gas lift valve with an outer diameter of 1.0 "into and from an side pocket mandrel. The OK series kickover tool requires a guide sleeve and a discriminator structure inside the mandrel. The default material for this tool is 42CrMo, but stainless steel or nickel based alloy materials can also be provided according to customer needs.

Feature and Advantage

• Can be matched with standard steel wire insertion tools and salvage tools

• The main material can be adjusted according to the usage environment

Application

• Used for running or pulling operations of 1 " wireline retrievable gas lift valves
