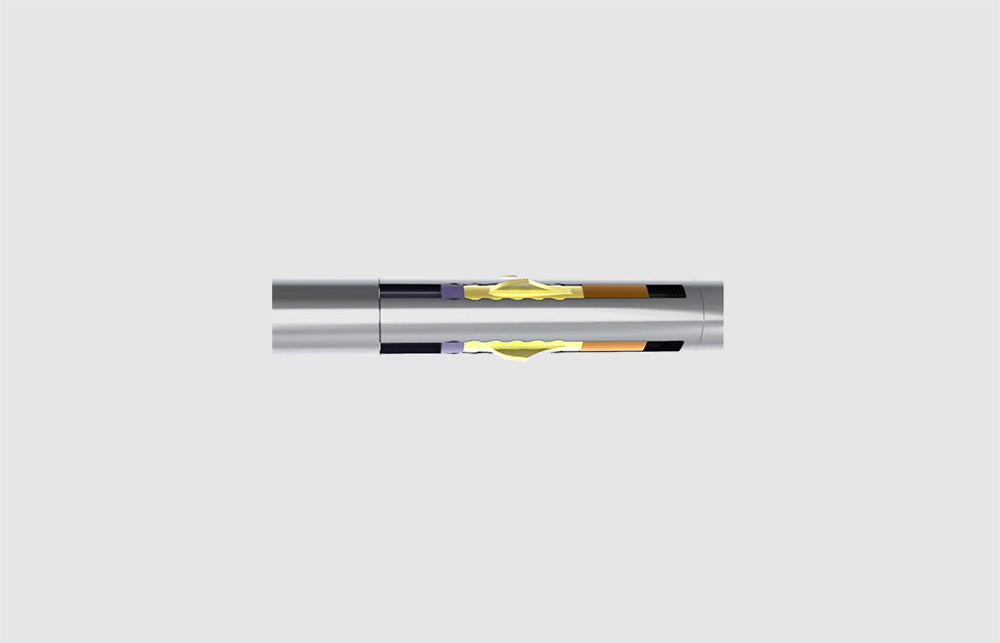

HYDRAULIC CASING PERFORATOR

Our Casing Perforator Tool is a safe, multi-use hydraulically powered alternative to conventional explosive based perforation systems.

The Hydraulic Casing perforator is non-explosive system which is easily transported to Lease or offshore rigs with limited risk and no special permits required with limited space requirements.

The knives cut through the casing by stackable pistons generate axial force for the knives. Then stop the pump and the knives was reset by the spring force. Move the string to the next cutting depth and repeat the operation to conduct perforator operation.

Features:

• Explosive-Free Solution.

• No Burn or Compaction Zone.

• Numerous Cuts per Run.

• No damage to casing. Casing keeps shape.

• Environmentally Friendly - No scrap steel gun casings.

• Stimulation, Washing Cleaning and Re-Cementing of the Casing b-Annulus for Plug in one trip.

• Blade does not extrude out of the perforation therefor no damage to the backside.

• Ease of operation.

Application

• Casing Perforator.

• Casing Slicing.

• Cut and Pull operation.

• Can be run with bridge plugs,packers.
