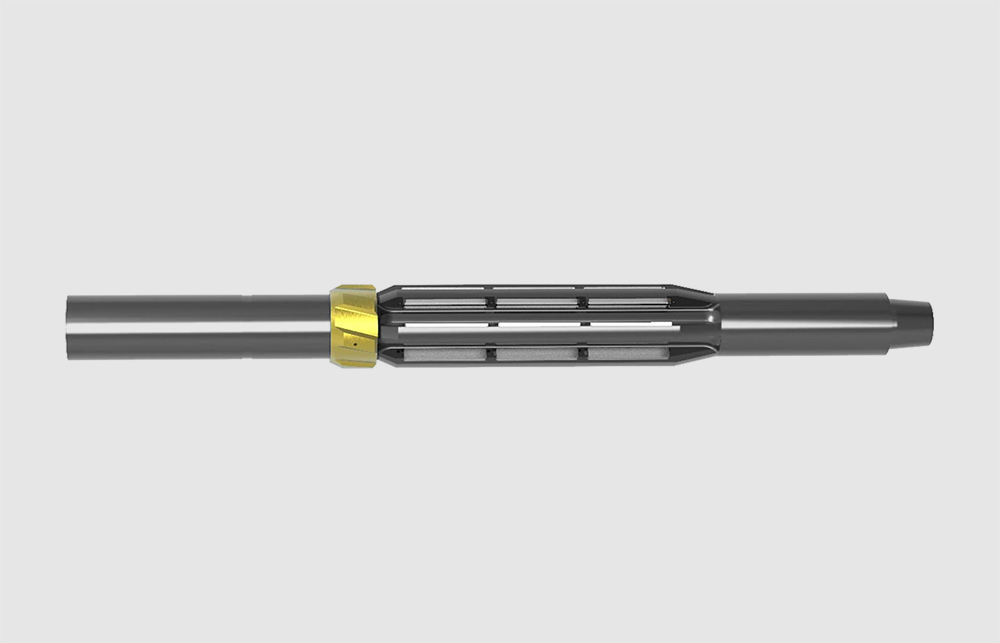

STRING MAGNET

Super magnetism to collect the metallic debris. The Rock’s’ String Magnet is used for collecting ferrous metallic debris, which may lead to failed completions and plugging of downhole equipment.

It has a recessed magnetic section with numerous individual magnets. These magnets attract and capture metallic debris through strong magnetic forces. The tool has a large carrying capacity, ensuring efficient debris removal. Usually, it runs near the bottomhole assembly, and multiple tools can be used in the string to optimize the cleanup operation.

Features:

• High temperature model also available.

• The magnets are double coated to minimize corrosion.

• The design allows the drill string to rotate with the magnet section remaining stationary.

• The design enables drill string rotation while the magnet section remains stationary, which reduces casing wear and minimizes the risk of debris becoming detached.

• Large debris collection area.

• Easily clean at the rig site.

Application

• Run as a part of drill string when doing a washing or circulation run.

• Cleaning during or after milling.

• Prior to running completions to clean the well.
