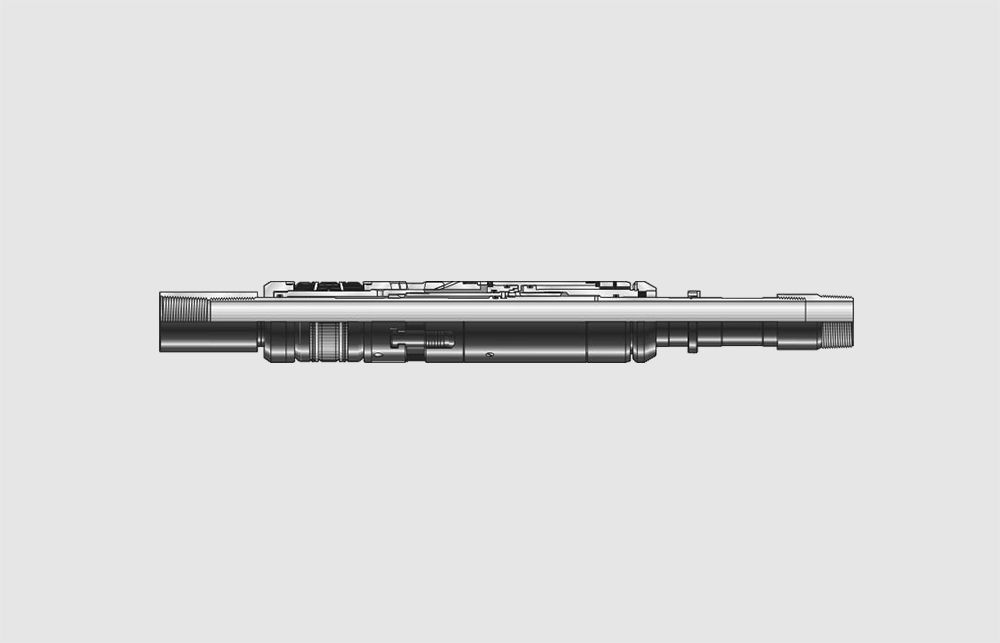

RHS HYDRAULIC RETRIEVABLE PACKER

The RHS is setting the standard for high-performance, single-string retrievable, hydraulic-set shearrelease packers. Its simple and reliable design provides maximum pre-set prevention while running and has improved sealing and retrieving reliability, metallurgy and elastomer selections fit for the well environment. Other applications include: production, injection and zonal isolation; single-string selective completions or dual-string completions with multiple packers; completions that require pre-set prevention while running; deviated wells or other applications when rotation for installation or removal is not beneficial; when it is beneficial to displace and set packers after the well is flanged up.

Features

• Operationally simple

• Hydraulically set

• Shear release

• Built-in unloader and bypass, aids in releasing and retrieving

• Hydraulic interlocking system

• prevents preset

• Patented element system incorporates

• a “zero gap” backup system

• All O-rings tested during assembly of packer

• Bi-directional slips

• Short, compact design

• No mandrel movement during setting allows stacked-packer applications

Other sizes, connections, material and rubber options available upon request.
