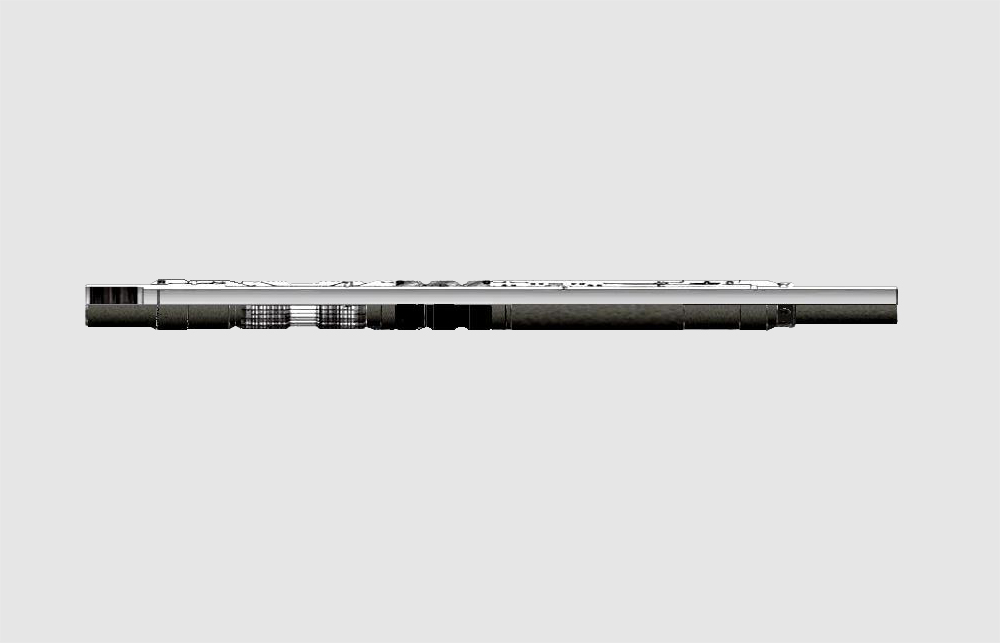

RH-RC HYDRAULIC RETRIEVABLE PACKER

The RH-RC packer is a retrievable, hydraulic-set production packer set in casing to divert casingtotubing flow .It is set by pressuring up the tubing string against a plugging device below the packer. Bi-directional, integral slips hold the packer against well pressures from above and below. Springloaded internal slips maintain the packer in the set position. The packer is a pull straight up and shear to release packer that is convertible to cut to release.The shear release value is adjustable.

Features

• Barrel slip design to minimize the pressure on casing

• One piece mandrel structure with high strength

• Big bore design

• Triple seal multi-durometer element

• High load bearing capacity

• Pull straight up and shear to release, and shear release value is adjustable

Other sizes, connections, material and rubber options available upon request.
