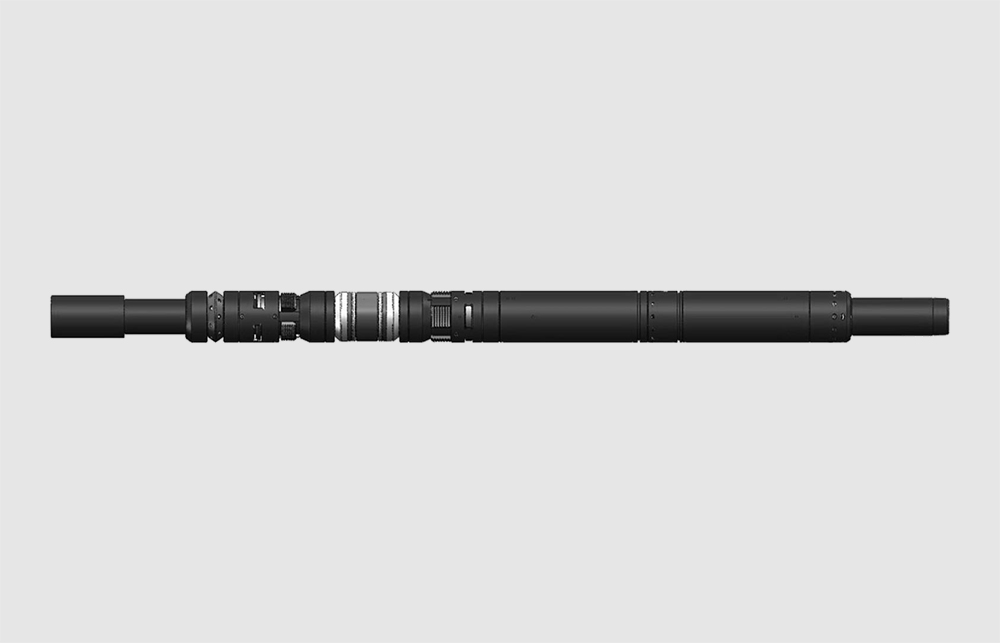

RHLR HYDRAULIC RETRIEVABLE PACKER (V0)

The RHLR packer is a hydraulically set, large-bore retrievable packer. This tool can be used in the completion operations of ultra-deep, high-temperature and high-pressure oil and gas wells. It can be applied in both single packer completion operations and multiple packer completion operations. With a large bore, it can meet the requirements of large-volume acidizing and renovation in ultradeep wells.

The tool is retrieved by shearing the pins by pulling up, which greatly reduces the cost of later well servicing.

Features

• The cava - rubber cylinder - cava structure ensures a firm setting seal and can withstand bidirectional high pressure differences

• It is easy to lift and unseal

• It features a large-diameter design with an inner diameter close to that of a conventional permanent packer

• The card is equipped with a dust-proof mechanism to prevent debris from accumulating around the card and ensure the smooth recycling of the tool

• The multi-stage piston design ensures that the retaining wall and the rubber cylinder are fully compressed

• It has excellent gas sealing capability, with the sealing performance reaching up to 232℃/105MPa, which can be achieved at most API 11D1 V0 level

Application

• It is applicable to the completion operations of deep and ultra-deep Wells, and is used for various production and stimulation measures such as stratified oil recovery, stratified water injection, acidification, and fracturing

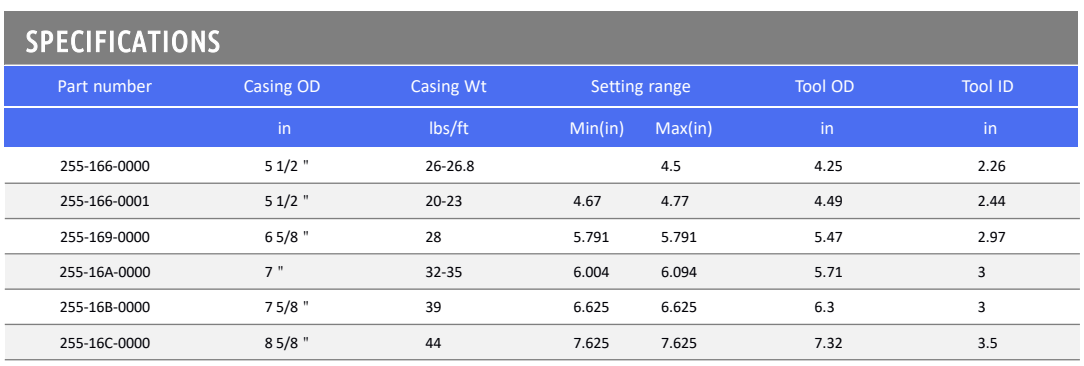

Other sizes, connections, material and rubber options available upon request.
