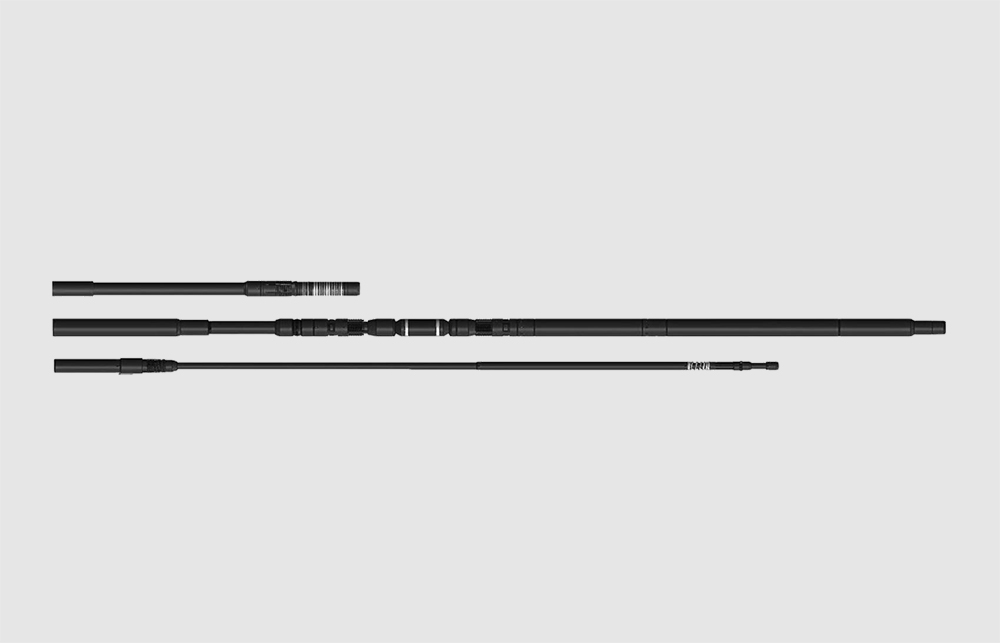

RSHLR HYDRAULIC RETRIEVABLE PACKER (V0)

The RSHLR packer is a hydraulic set seal, large-diameter recyclable packer. This tool can be used in the completion operation of ultra-deep high-temperature and high-pressure oil and gas Wells. It combines the stability of large-diameter permanent packers and the ease of handling of removable packers, providing morecompletion scheme options for hightemperature and high-pressure oil and gas Wells. At the same time, it can be used as the top seal for the completion of multiple packers.

This tool completes the recovery operation through a dedicatedtool, which not only enhances the stability of the tool downhole but also significantly reduces the later well repair costs.

Features

• The cava - rubber cylinder - cava structure ensures a firm setting seal and can withstand bidirectional high pressure differences

• Specialized tool recycling, with stable sealing and recycling performance,can be used as a suspended packer

• The large diameter design has an inner diameter close to that of a conventional permanent packer

• Dust-proof mechanism to prevent debris from accumulating around the card, ensuring the smooth recycling of tools

• High-performance anchoring sealing mechanism, with a maximum sealing performance of up to 232℃/105MPa

• Excellent gas sealing capability, up to API 11D1 V0 level

Application

• It is applicable to the integrated operation of completion and modification for deep and ultra-deep oil and gas Wells

• It is applicable to various production and stimulation measures operations such as stratified oil recovery, stratified water injection, acidification, and fracturing

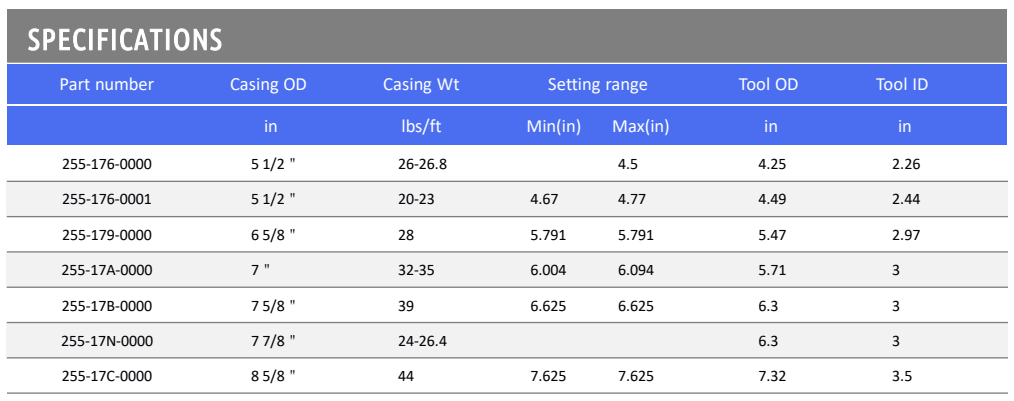

Other sizes, connections, material and rubber options available upon request.
