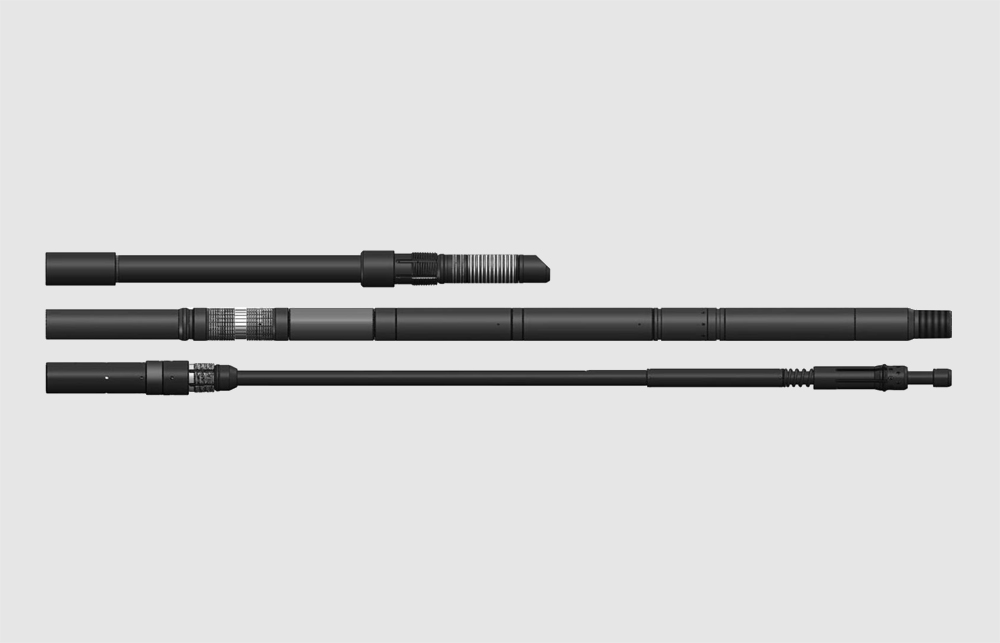

RLBHP HYDRAULIC RETRIEVABLE PACKER (V0)

The RLBHP packer is a hydraulic set seal, large-diameter recyclable packer. This tool can be used in the completion operation of ultra-deep high-temperature and high-pressure oil and gas wells. It combines the stability of large-diameter permanent packers and the ease of handling of removable packers, providing more completion scheme options for hightemperature and high-pressure oil and gas Wells. At the same time, it can be used as the top packer for the completion of multiple packers,and is particularly suitable for use as a suspended packer.

The tools are recovered through dedicated tools, which not only enhances the stability of the tools underground but also significantly reduces the later well repair costs.

Features

• The cylindrical double conical surface bidirectional clamping design increases the number of effective working teeth, enhances the load-bearing capacity, and can withstand bidirectional pressure

• Specialized tool recycling, with stable sealing and recycling performance, can be used as a suspended packer

• It features a large-diameter design with an inner diameter close to that of a conventional permanent packer

Application

• It is applicable to the completion operations of deep and ultra-deep wells, and is used for various production and stimulation measures such as stratified oil recovery, stratified water injection, acidification, and fracturing

• It is applicable to the integrated operation of completion and modification for deep and ultra-deep oil and gas Wells

• It is suitable for use as an upper suspended packer during open-hole well completion

Other sizes, connections, material and rubber options available upon request.
