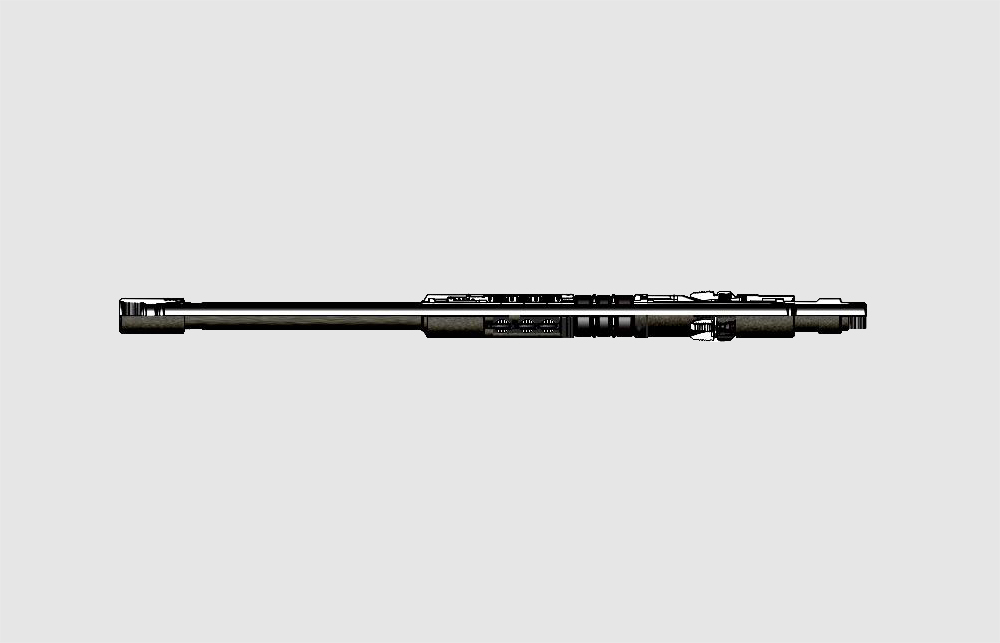

RR-3D MECHANICAL RETRIEVABLE PACKERS

RR-3D Double Grip Retrievable Casing Packers are used in production, stimulation and testing applications. Their hydraulic hold down is below the pressure equalization valve. They feature a proven three element packing system and a balance sleeve device to assist in keeping the by-pass closed. They are available for 4 1/2" through 9 5/8" casing.

Features

• Sets securely in any hardness casing, including premium grades

• Three piece packing element system

• Hydraulic hold down button unit with large internal flow path located below the bypass valve to reduce element swabbing and button wicker dulling

• Surface controlled combination bypass and equalizing valve

• Tubing pressure actuated collet lock to eliminate excessive set down weight requirements

• Rocker type Slips

• Parts are interchangeable with other manufacturers

Other sizes, connections, material and rubber options available upon request.
