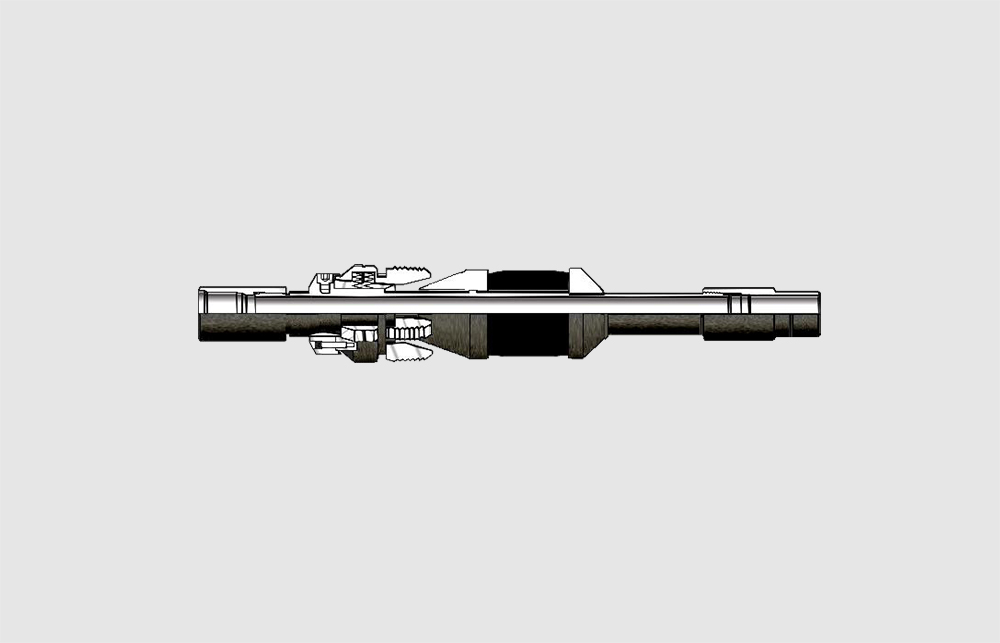

RAD-1 TENSION PACKER

RAD-1 Tension Packer is a retrievable, tension set packer, designed to hold pressure from below. This economical tension packer is for shallow wells where sufficient set down weight is not available to utilize a set down packer. This packer can be used in water flood, oil production or treating applications. They are available for 4" through 13 3/8" casing.

Features

• Sets securely in any hardness casing, including premium grades

• Compact, short, easy to transport and run

• Bore is larger than tubing drift diameter

• Easy to operate J-Slot control

• Rocker type slips

• One piece packing

• Three release methods, Normal release, Shear release and safety joint to sub

• arts are interchangeable with other manufacturers

Other sizes, connections, material and rubber options available upon request.
