Y-BLOCK

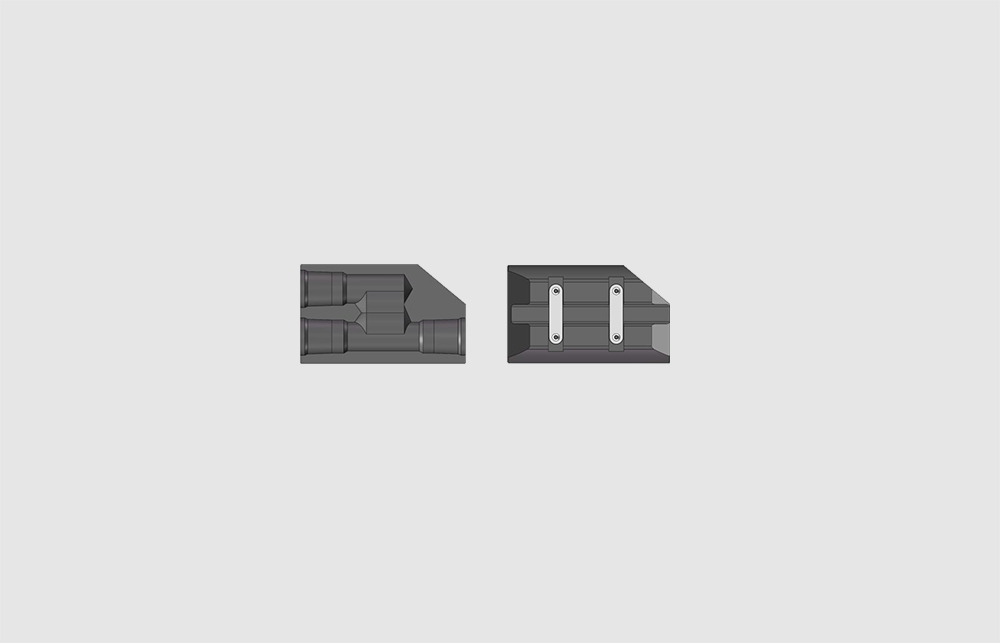

Y-Block is applied to Electric Submersible Pump completion string. The upper part of Y-Block is attached to the landing nipple, and the lower part of Y-Block connects to both landing nipple and the ESP. The tensile strength and compress strength of Y-Block is equal to or greater than that of N80 grade tubing, it also has corrosion resistance at the same time.

Features

• Large flow area.

• Simple design

Other sizes, connections, material options available upon request.
