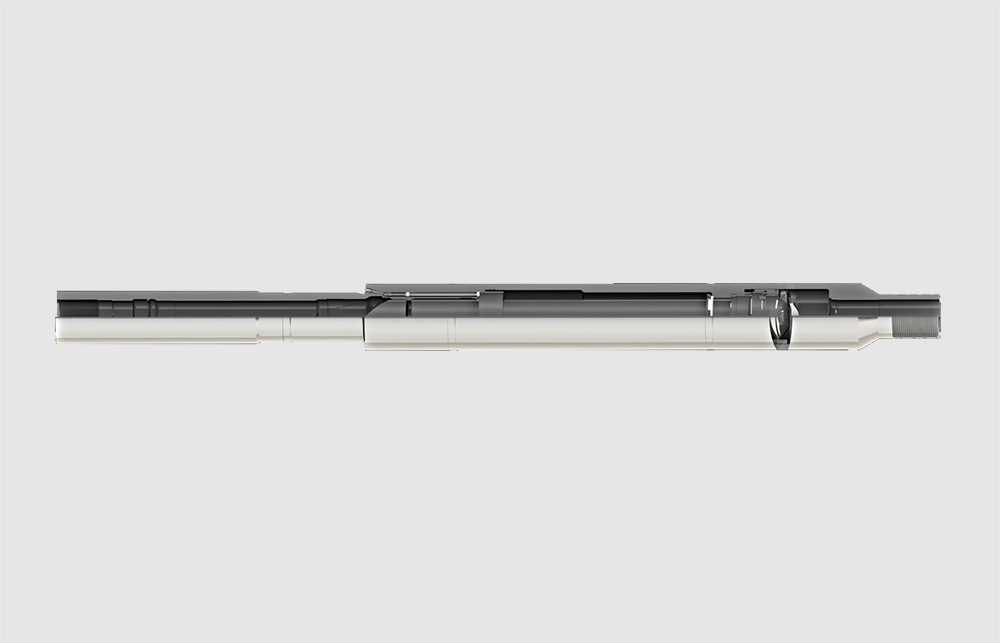

S-SERIES SUBSURFACE SAFETY VALVE

The S-Series Tubing-Retrievable Safety Valve is a single rod-piston non-elastomer flapper valve designed for where ultimate reliability is required. The piston achieves a metal-to-metal seal at its uppermost and lowermost positions to seal well pressure from the control system. The Ultra strong curved flapper design provides full metal-to-metal sealing integrity. These ultra-slimline curved flappers allow operators to reduce their overall costs and maximize their return on investment by maintaining a large bore ID while reducing the casing sizes needed for the completion.

Features and Benefit

• Positive debris barrier at both ends of flow tube in full-open position

• Metal-to-metal static seal at upper and lower piston positions flapper equalizing system

• Non-elastomer dynamic piston seals

• It is highly reliable to use metal to metal sealing style in the sealing chamber

• Two step metal-to-metal sealing system provides strength and sealing under the harshest conditions

• Complete metal-to-metal well containment in the closed position (body/seat connections and flapper)

• Ultra strong power spring ensures smooth and reliable closures

• The optimized safety-valve design facilitates use of control-line communication and lockout tools to install a wireline-insert safety valve in the event of a malfunction, thus minimizing production disruptions

Application

• HTHP Well, Gas Well, Min Casing Size Well

• Deep Set Application; Hostile Environments
