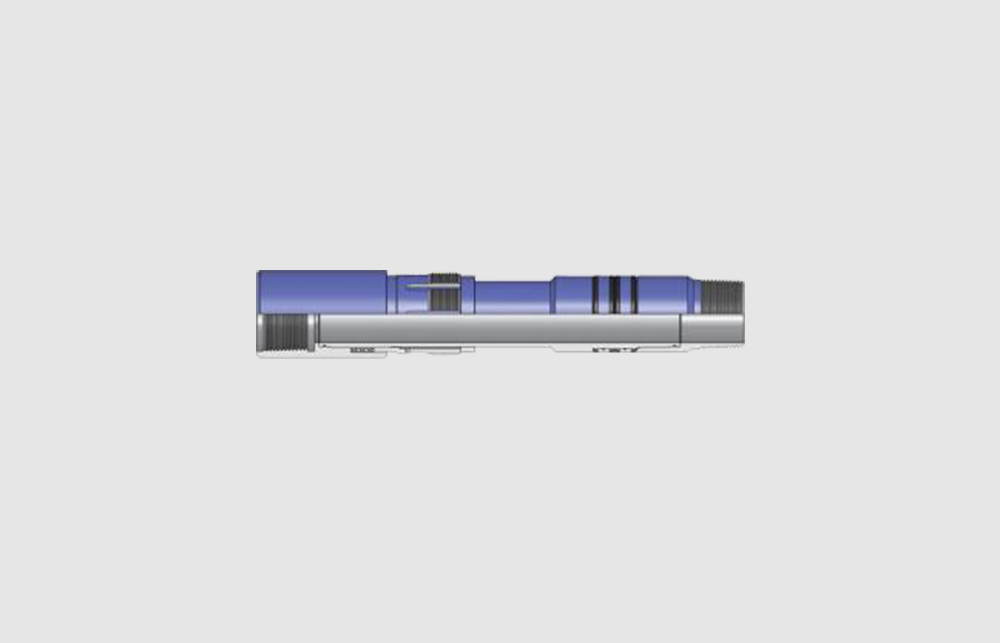

ASA ANCHOR LATCH SEAL ASSEMBLY

The ASA Seal Assembly is used in single or multiple zone installations to provide a positive surface indication that the seal assembly is correctly positioned in the polished bore receptacle and to eliminate production seal movement under normal conditions. This type anchor latch seal assembly is ran with a production string and snap into top packer and locked in position to isolate production zones, once positioned in place this latch doesn’t allow seal movement during normal changes in temperature and pressure. If pulling up is necessary, straight up-stain pulling will pull the seal assembly out out of the polish bore.

Feature

• Standard bonded seals with debris tolerance feature

• Seal movement is prevented

• Higher-performance seals are available for hostile environments

Application

• Single or multiple-zone completion completion
