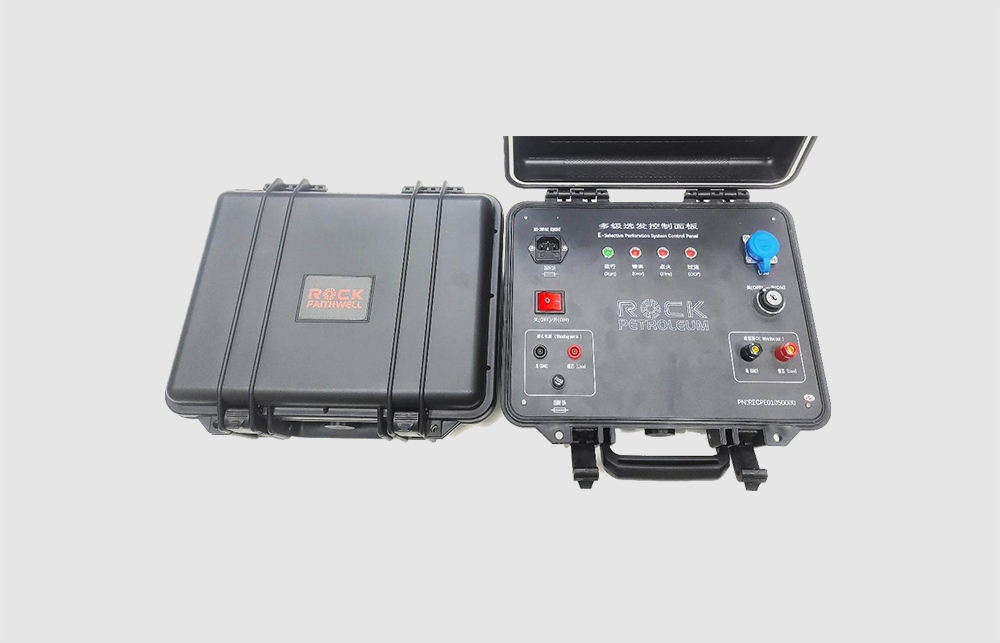

Control Panel

Technical Information

•Perforating command and control panel connects the shooting panel and wireline;

•Fully automated software drive panel;

•Relay disconnect when switch communications are not In progress;

•On/off key for power off confirmation;

•Gun communication limits;

•Input Voltage: AC100 ~ 240V, 50Hz;

•Output Voltage: 0 ~ 36V;

•Output Current:＜200mA;

•Connect Switch Quantity： 1 ~ 50;

•Size:323mm×275mm×135mm.
